Name: HDPE Geomembrane Liner | High quality waterproof board
Availability: InStock

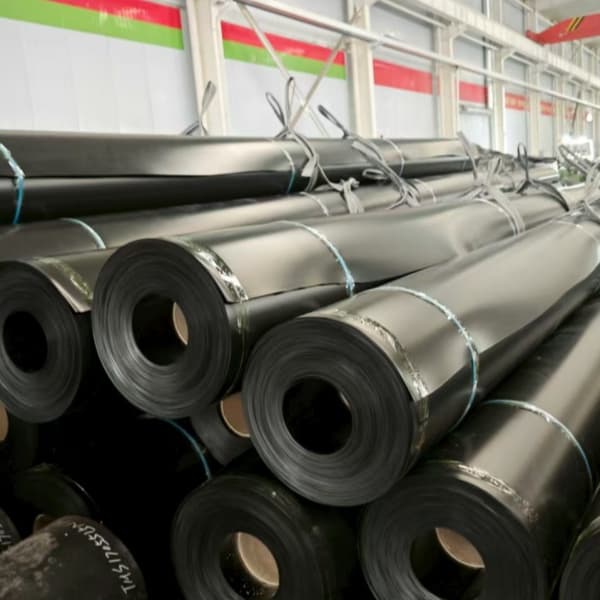

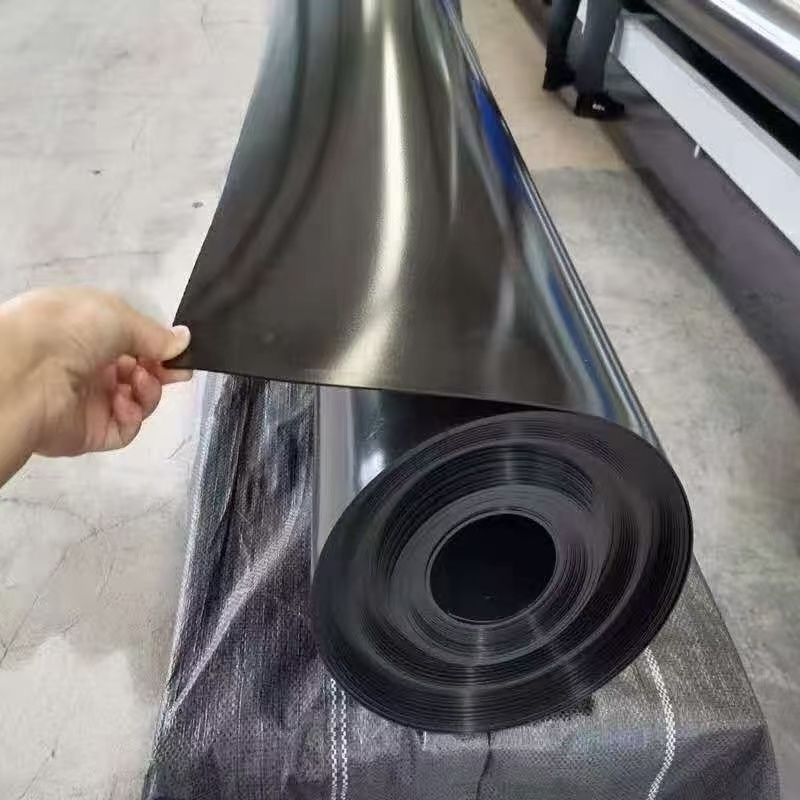

High Quality HDPE Geomembrane Liner Waterproofing

HDPE geomembrane, also known as high-density polyethylene geomembrane, is a waterproofing material made from high-molecular-weight polymers. Its primary components are HDPE polymer resin, carbon black, antioxidants, anti-aging agents, and various additives, such as UV absorbers. The ratio of HDPE resin to additives is 97.5/2.5, meaning 97.5% HDPE raw material and 2.5% additives.

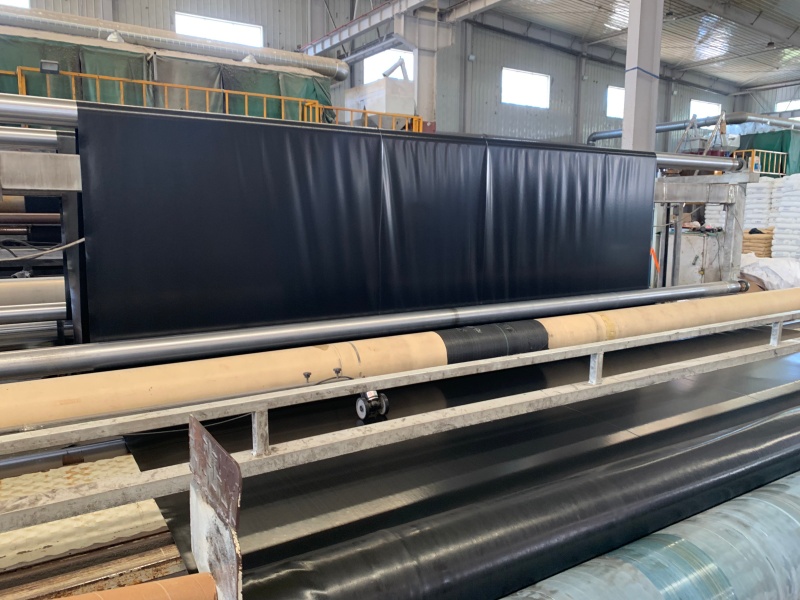

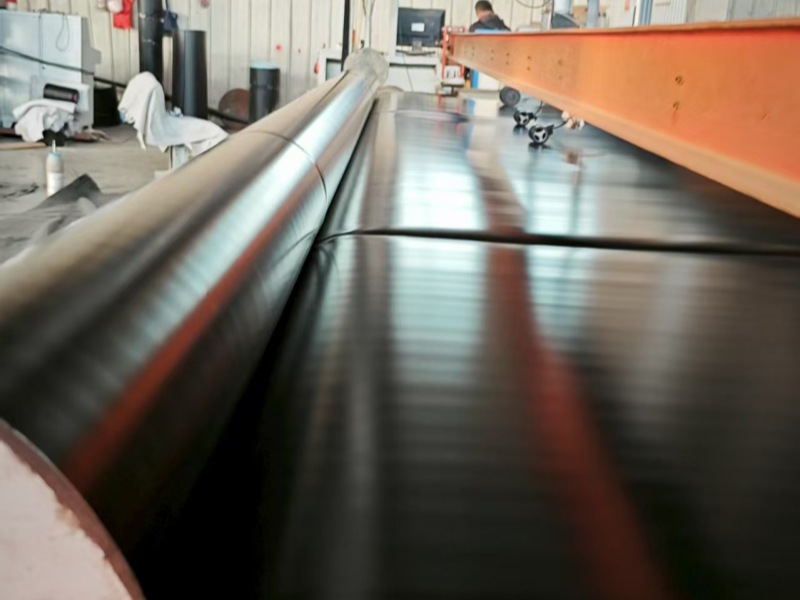

It is manufactured using triple co-extrusion technology using state-of-the-art automated equipment imported from Germany.

Types & Parameters

Based on their surface finish, HDPE geomembranes can be categorized as smooth HDPE geomembranes and textured HDPE geomembranes (including those with textures on both sides and one side).

Textured geomembranes have a higher coefficient of friction than smooth geomembranes.

Parameter	Value Range	Notes
Thickness	0.3mm – 3.0mm	Common specifications: 0.5mm, 1.0mm, 1.5mm, 2.0mm
Width	1m – 8m	Customizable, commonly used 7m, 8m
Length	30m – 200m per roll	Depends on thickness
Tensile breaking strength	≥ 6 – 80N/mm	Compliant with GRI/ASTM standards
Elongation at Break	≥ 700%	High flexibility
Carbon Black Content	2% – 3%	Enhanced UV and anti-aging properties
Tensile yield strength	4 – 44N/mm	Depends on thickness
Surface	Smooth / Textured	Single or double-sided texture
Standard	ASTM / GRI GM13	International testing standards

Advantages & Strengths

1. Excellent Impermeability

2. Excellent Chemical Stability

3. High Durability

4. High Mechanical Strength

5. Environmental Adaptability

6. Cost-Effectiveness

Popular Applications

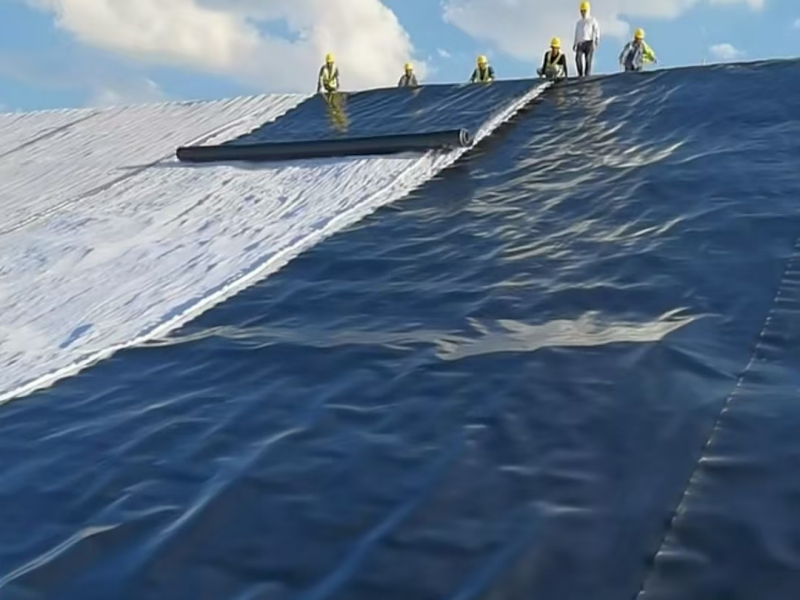

Environmental Protection Projects:

60 mil HDPE liners or 2.0 mm geomembrane liners are used for municipal solid waste landfills and hazardous waste landfills (bottom liner system & top cover system to prevent leachate from contaminating groundwater, control landfill gas, and prevent rainwater infiltration).

60 mil HDPE liners are used for seepage prevention in regulating ponds, anaerobic ponds, and oxidation ponds.

2.0 mm thick liners are used for industrial tailings ponds and red mud dumps (to prevent leakage of hazardous substances).

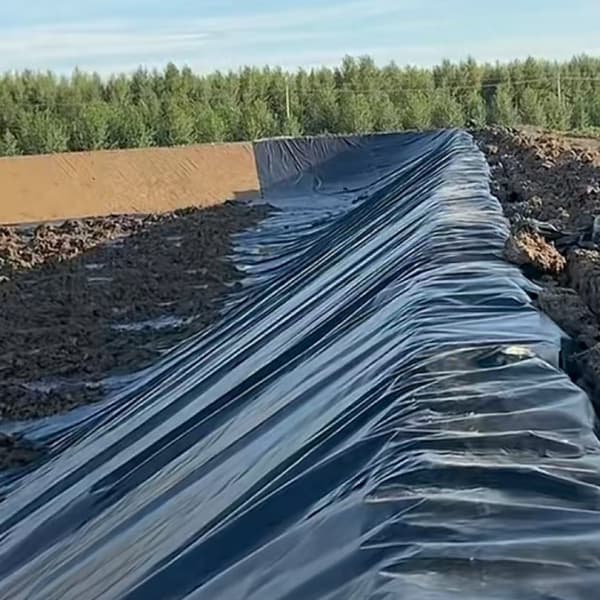

Water Conservancy Projects:

30 mil high-density polyethylene liners are used for seepage prevention in reservoirs, artificial lakes, and landscape water bodies.

60 mil HDPE liners are used for seepage prevention in rivers and irrigation channels.

20 mil HDPE geomembrane liners are used for the anti-seepage layer of dams and cofferdams.

Aquaculture:

For fish ponds and shrimp ponds, use 0.5mm anti-seepage lining or 40 mil HDPE geomembrane.

Mining:

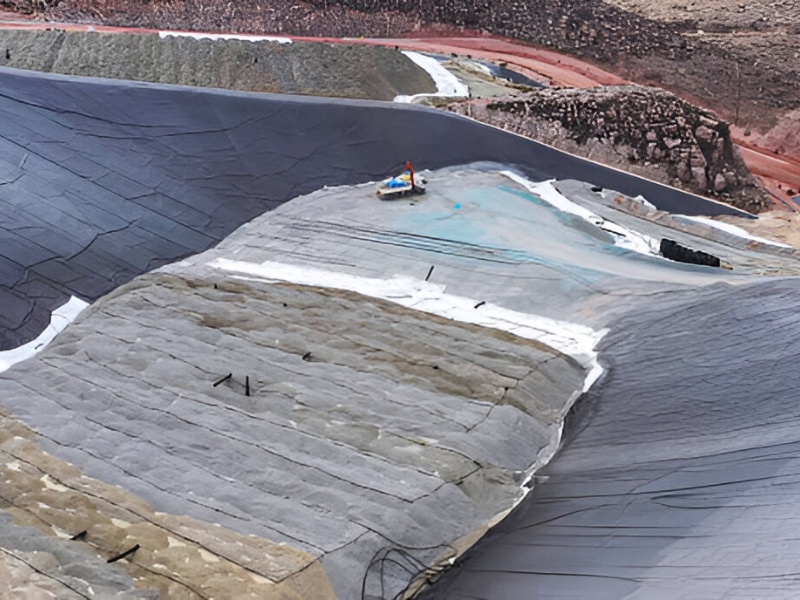

For heap leaching sites, solution tanks, acidic and alkaline wastewater collection basins, etc., use 2.0mm geomembrane lining for anti-seepage.

Construction:

For basement moisture barriers, use 0.5-1.5mm geomembrane lining, rooftop garden root barrier, and 20 mil HDPE geomembrane lining for tunnel/subway waterproofing.

Industrial:

For oil tank farms and chemical storage areas, use 60 mil HDPE geomembrane lining for Secondary Containment.
